Realtime Kinematics and NTRIP

Real-Time Kinematics (RTK) GPS is a precise positioning technology that significantly improves the accuracy of standard GPS systems by leveraging correction data from reference stations. While conventional GNSS receivers typically achieve positioning accuracy on the order of several meters, RTK enables centimeter-level precision by correcting for errors such as atmospheric delays, satellite clock drift, and orbital inaccuracies.

This project, implements an RTK pipeline using NTRIP (Networked Transport of RTCM via Internet Protocol) to deliver correction data over the internet. A base station generates RTCM (Radio Technical Commission for Maritime Services) messages, which are streamed through an NTRIP caster. A rover receiver connects as an NTRIP client, retrieves these messages, and applies them to its GNSS observations to compute a precise position. NTRIP follows a lightweight architecture with three components: a server that publishes RTCM data, a caster that distributes streams, and clients that consume them. This approach removes the need for dedicated radio links and enables scalable, remote access to correction data.

RTK achieves its accuracy by incorporating carrier-phase measurements alongside pseudorange data. Resolving carrier-phase ambiguities between the base and rover allows for significantly higher precision. RTCM messages encode this information, including satellite observations and station metadata.

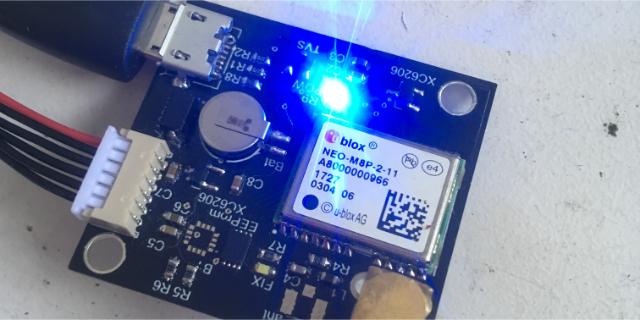

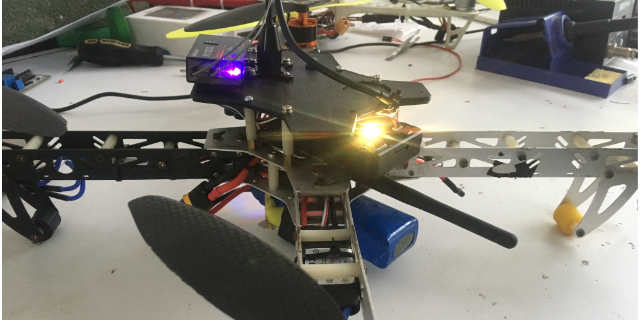

This project provides a practical, configurable solution for receiving and handling RTK correction streams, making it useful for GNSS applications in robotics, embedded systems, and autonomous platforms. It can be integrated with common receivers such as u-blox modules and adapted for real-time navigation systems. RTK GPS is widely used in surveying, precision agriculture, construction, and autonomous navigation, where centimeter-level accuracy enables reliable mapping, machine control, and UAV operations. By leveraging internet-based correction delivery, this project lowers deployment complexity and expands accessibility across diverse environments.

Find the repository with all the source files from above repo
